• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Pickup box
• Air cleaner, high-capacity
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)
• Differential, heavy-duty locking rear
• Four wheel drive
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Alternator, 150 amps
• Trailer brake controller, integrated
• Frame, fully-boxed, hydroformed front section
• Recovery hooks, front, frame-mounted, black
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps, backup lamps, right and left turn signals, an electric brake lead, battery and a ground, The trailer connector also includes the 4-way for use on trailers without brakes - park, brake/turn lamps
• Cargo tie downs (4), movable upper
• Steering, Recirculating Ball with smart flow power steering system
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 20" (50.8 cm) chromed aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• Tires, LT265/60R20E all-terrain, blackwall
• Wheel, 18" x 8" (45.7 cm x 20.3 cm) full-size, steel spare. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires 18" or 20" wheels and tires.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Wheelhouse liners, rear (Requires Crew Cab or Double Cab model. Deleted with (ZW9) pickup box delete.)
• Bumper, front, body-color
• CornerStep, rear bumper (Requires (E63) pickup box.)
• Bumper, rear body-color
• LPO, Assist Steps - 6" Chrome Rectangular (dealer-installed)
• Moldings, bodyside, chrome
• Grille surround, chrome
• Headlamps, halogen projector-beam
• Lamps, cargo area, cab mounted with switch on center switch bank
• Fog lamps, front, halogen
• Mirrors, outside chrome cap, heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators and puddle lamps (includes driver's side spotter mirror)
• Mirror caps, chrome
• Glass, deep-tinted
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower (Deleted with (ZW9) pickup box delete.)
• Remote Locking Tailgate
• Bed Liner, Spray-on Pickup box bed liner with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured, non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails, including tailgate, front box top rail, gauge hole plugs and lower tie down loops. consisting of high pressure, chemically bonded, sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured, non-skid surface is black in color. Spray-on liner covers entire bed interior surface below side rails, including tailgate, front box top rail, gauge hole plugs and lower tie down loops.

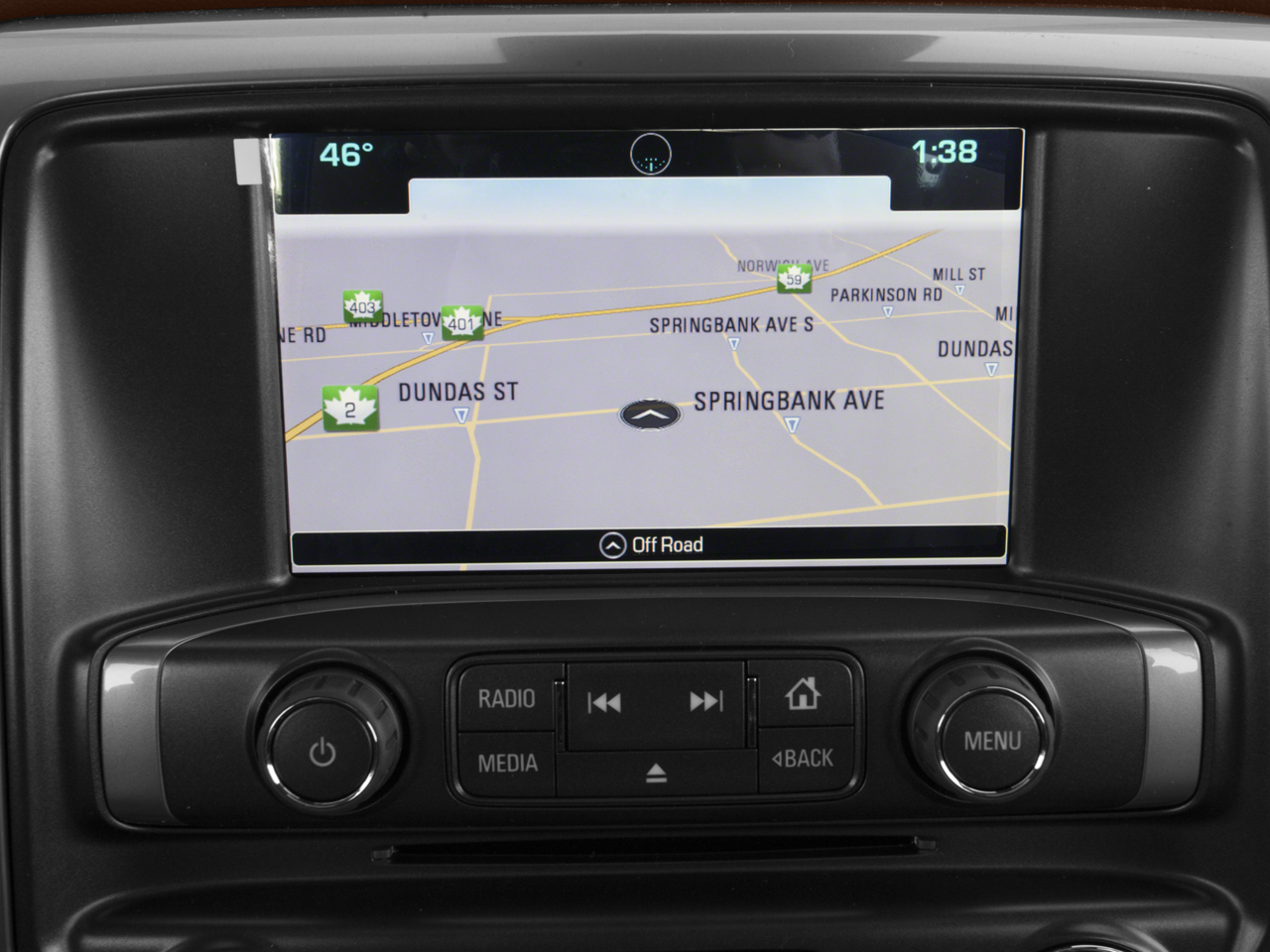

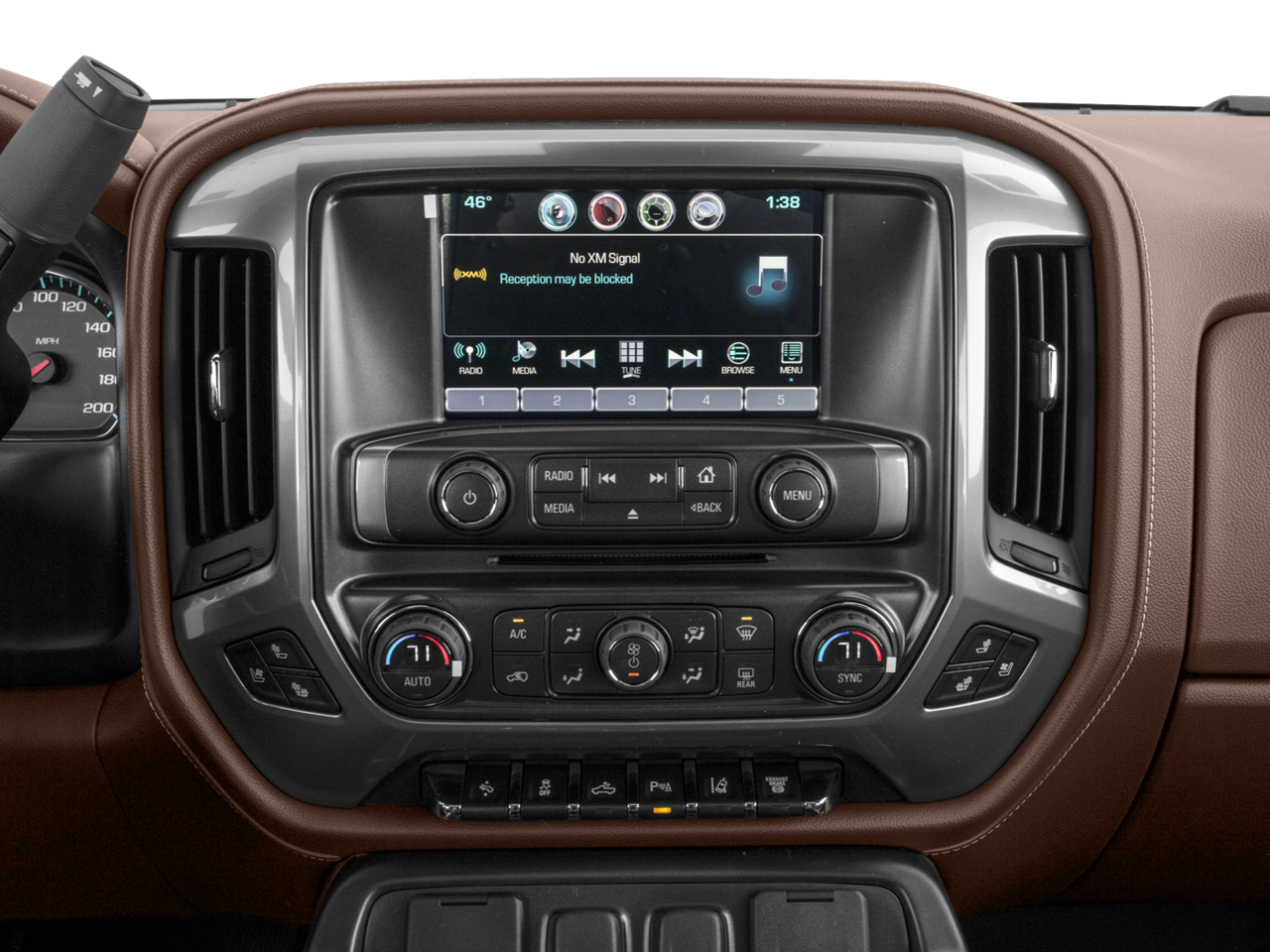

• Audio system, Chevrolet MyLink Radio with Navigation and 8" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; featuring Apple CarPlay capability for compatible phone.
• Single-slot CD/MP3 player (On Crew Cab replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered) (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Radio, HD
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats).
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes 3GB or 3 months OnStar Data Trial (whichever comes first) Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Wireless Charging Not compatible with all phones. Compliant batteries include QI and PMA technologies. Reference Mobile devices manual to confirm what type of battery it uses.)

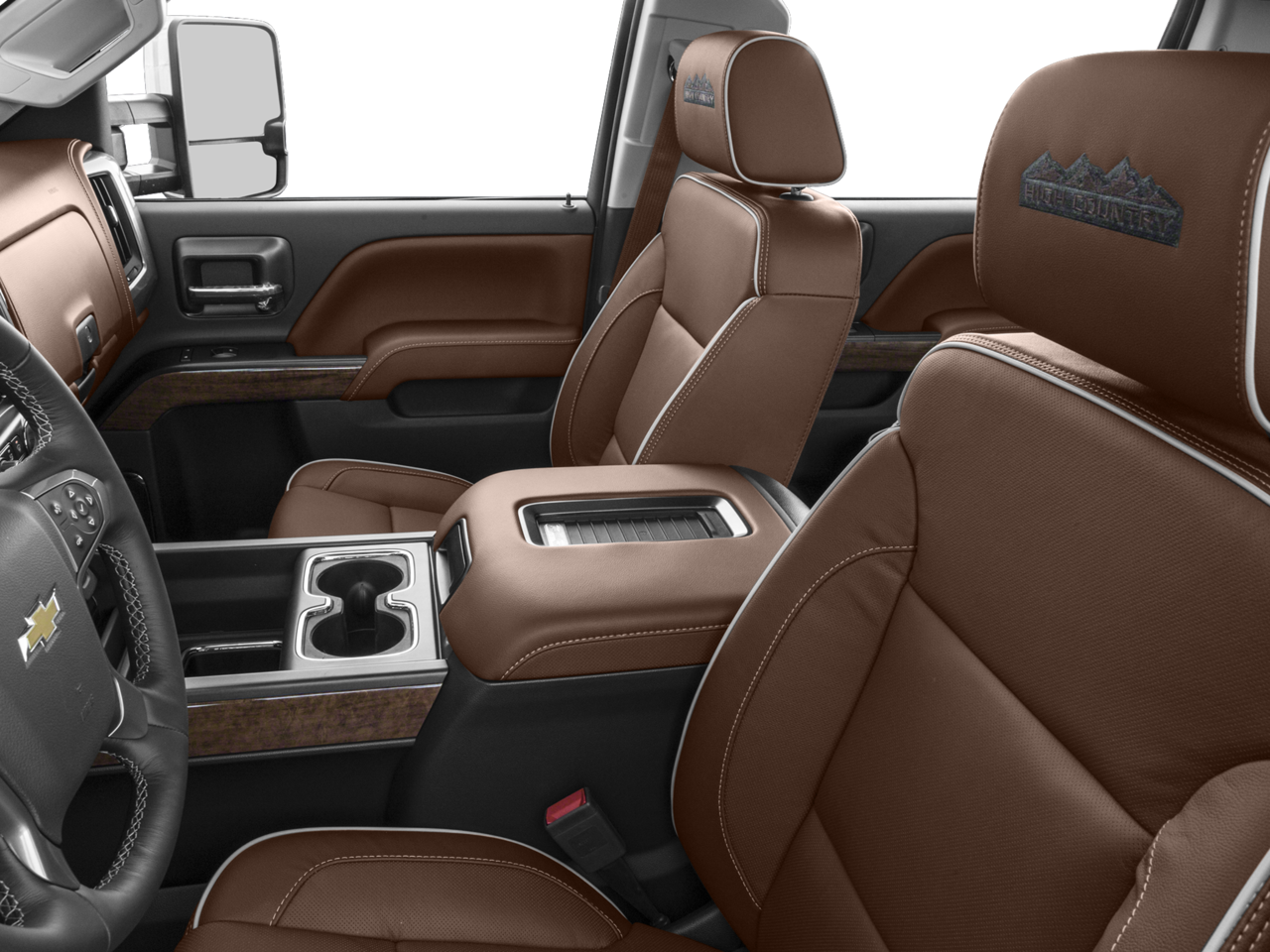

• Seats, front full-feature leather-appointed bucket includes 12-way power driver and front passenger seat adjusters, including 4-way power lumbar, 2-position driver memory, adjustable head restraints, (D07) floor console, storage pockets and (K4C) wireless charging.
• Seat trim, Perforated leather-appointed
• Seating, heated and vented perforated leather-appointed front bucket

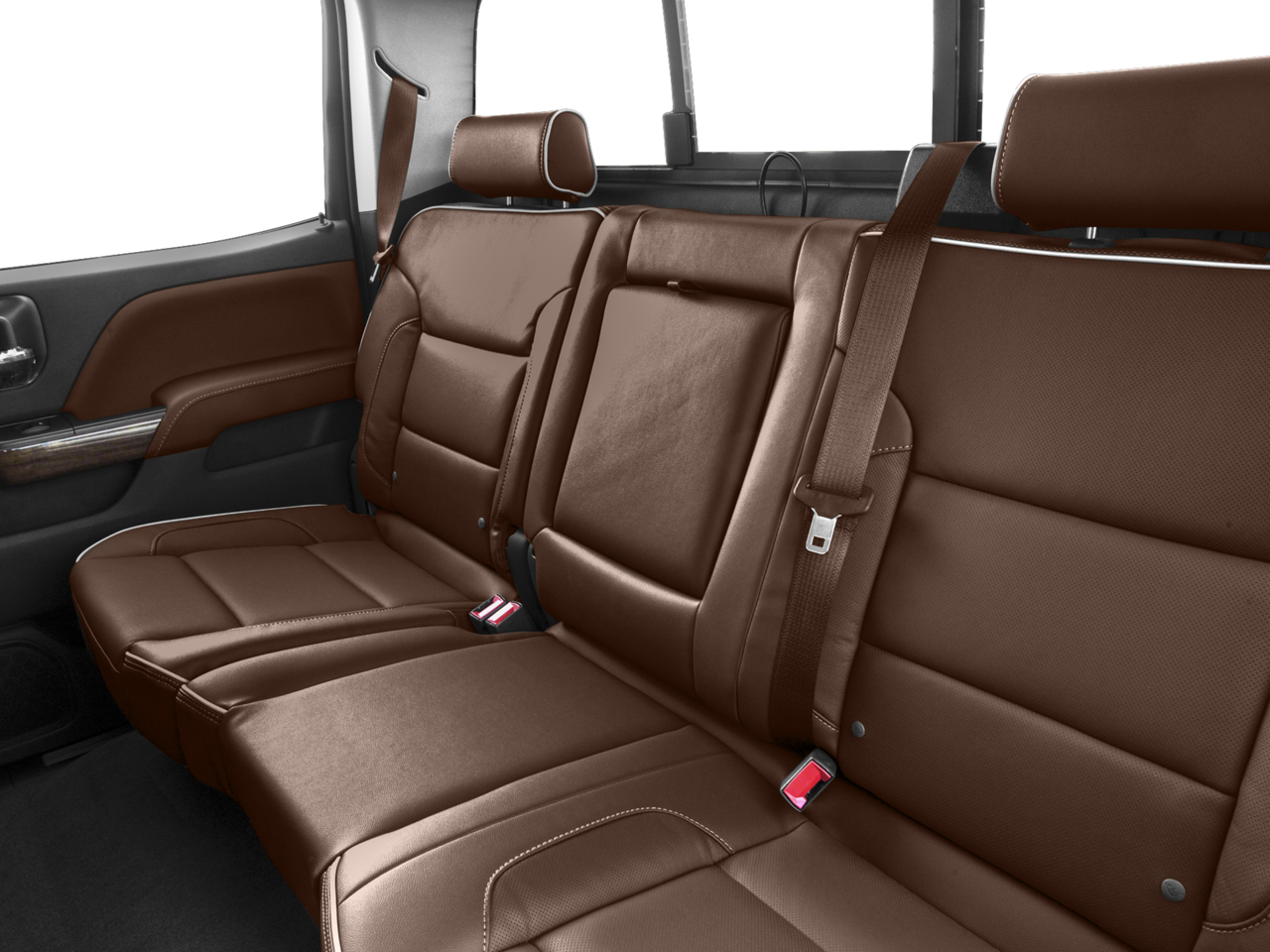

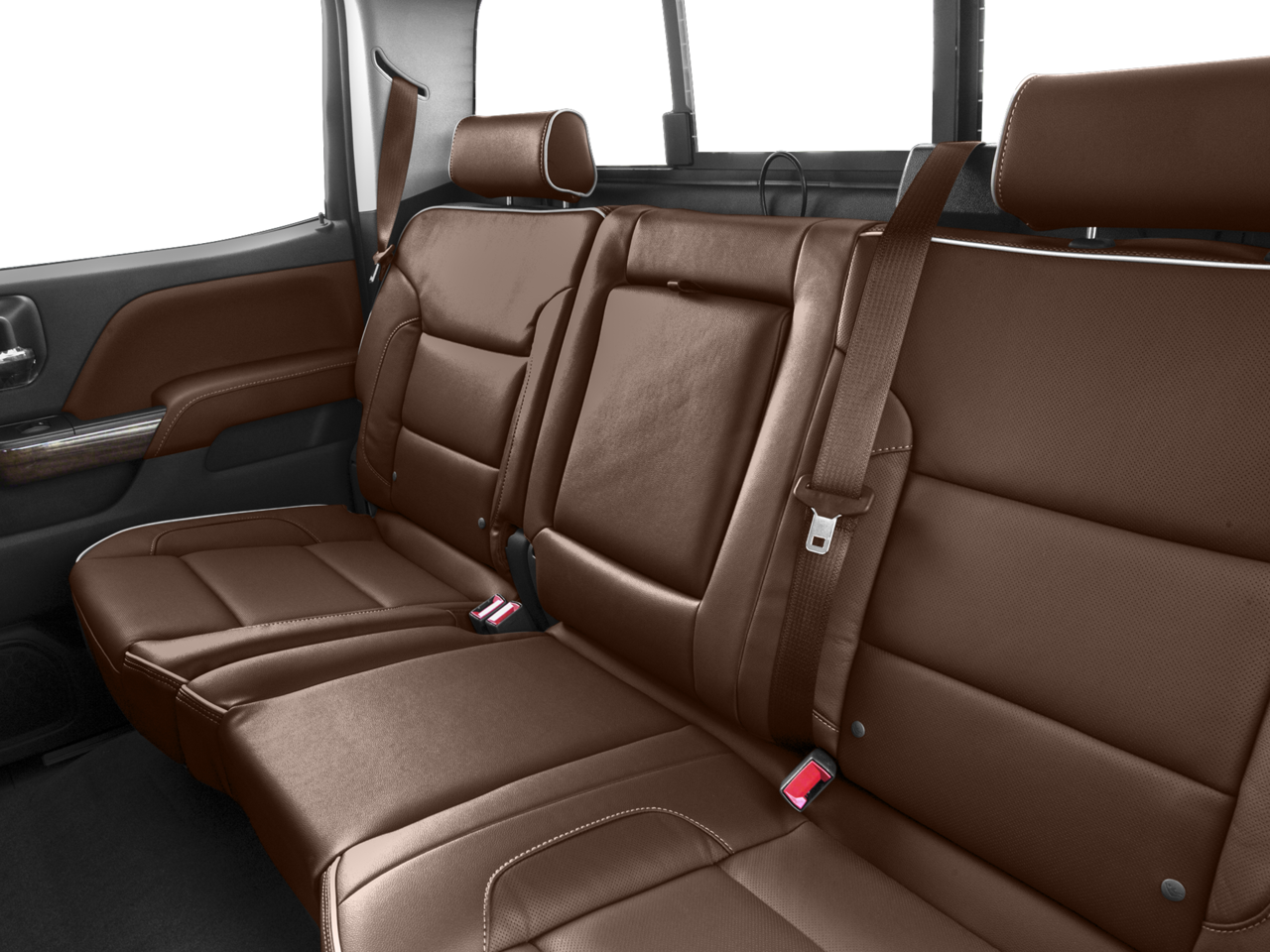

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Steering column, manual Tilt-Wheel and telescoping

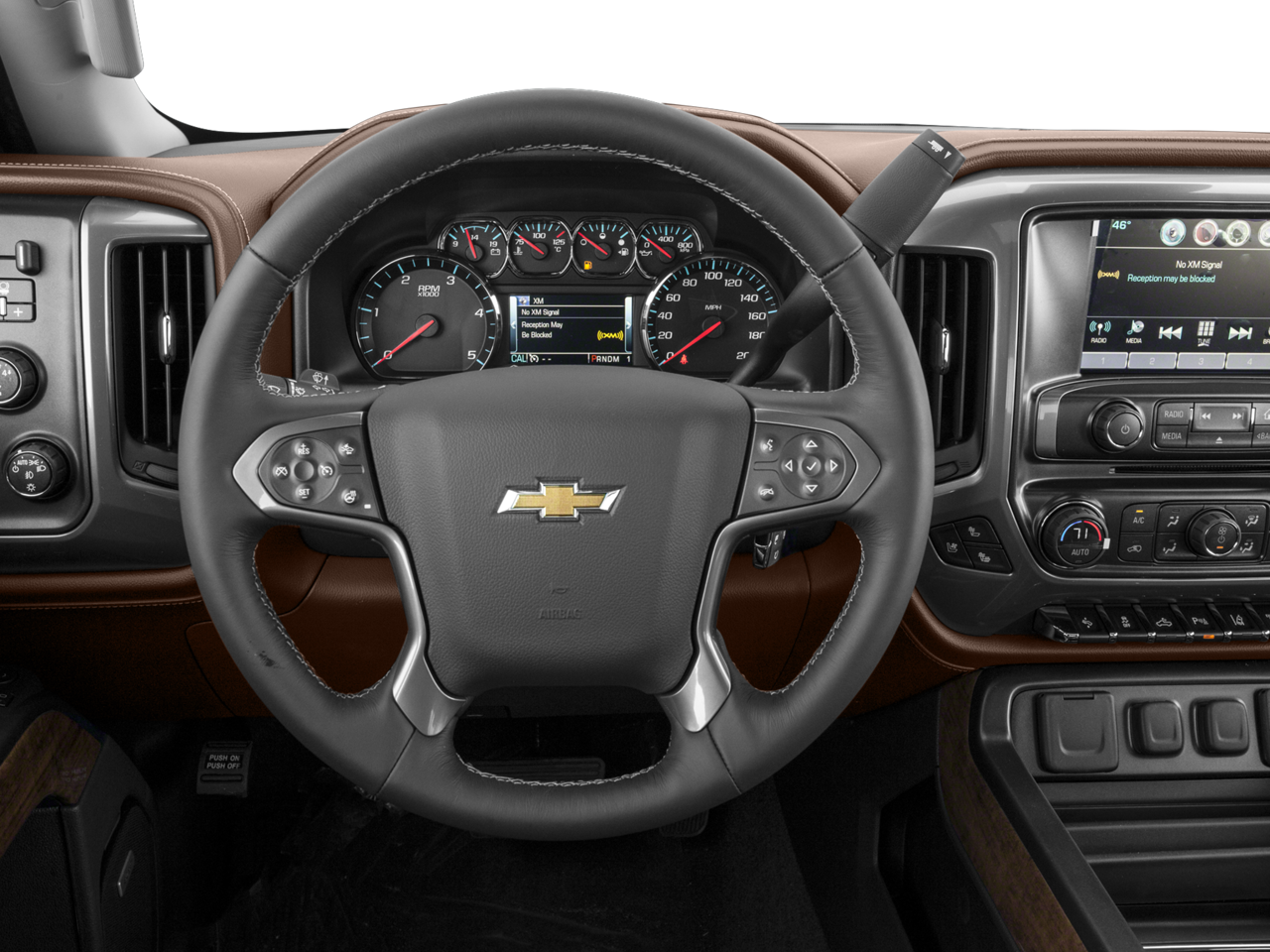

• Steering wheel, leather-wrapped with audio and cruise controls
• Steering wheel audio controls

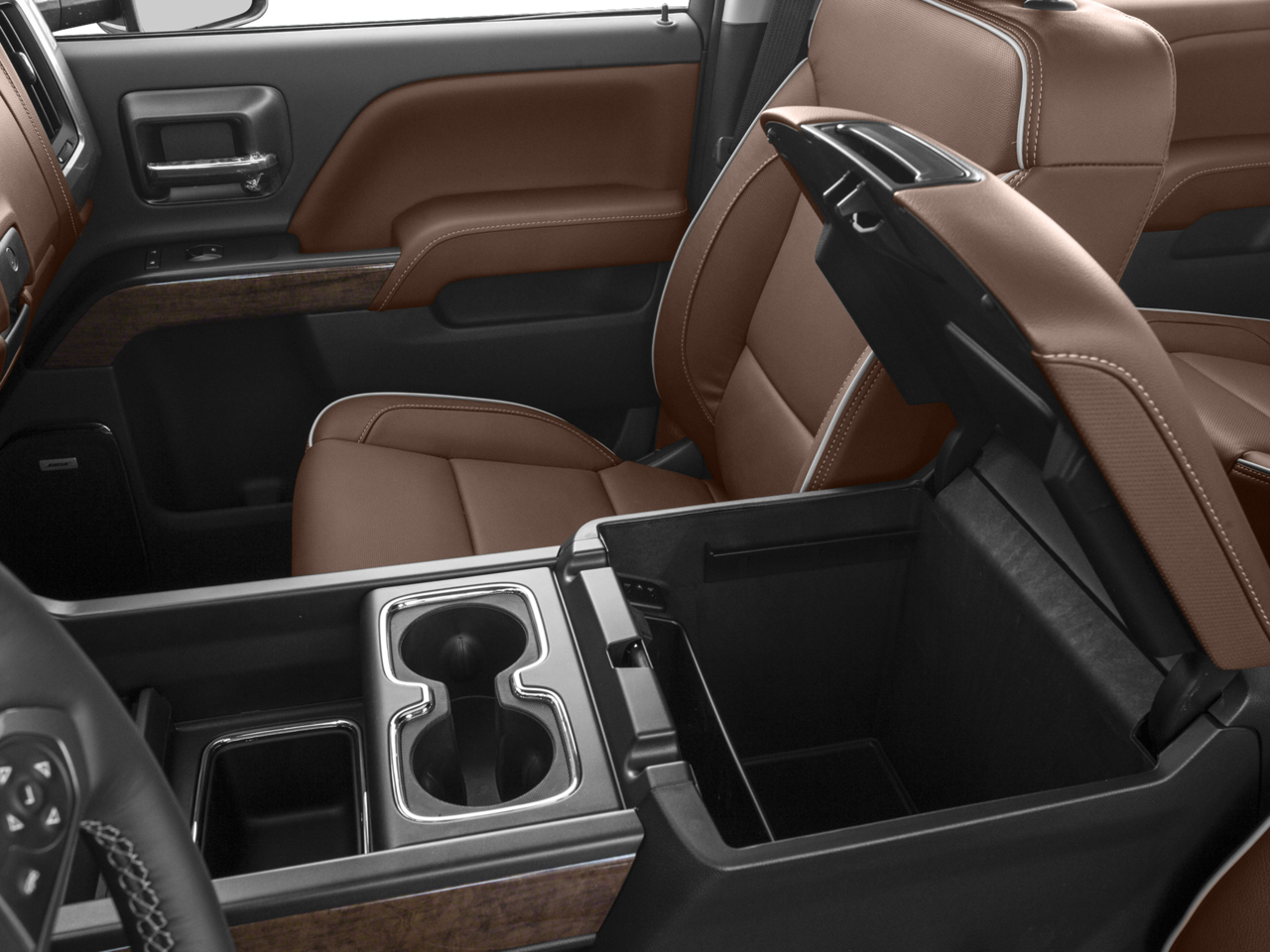

• Console, floor mounted, reconfigurable with cup holders, cell phone storage, power cord management, hanging file holder capability and (K4C) wireless charging
• Floor covering, color-keyed carpeting (Double Cab and Crew Cabs include second row floor mats)
• Floor mats, carpeted front and rear
• Sill plates, bright
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Cruise control, steering wheel-mounted
• Theft-deterrent system, unauthorized entry
• Remote vehicle starter system
• Remote Keyless Entry
• Universal Home Remote (Removed when (TRW) provisions for roof mounted lamp or (VYU) Snow Plow Prep Package is ordered.)
• Air conditioning, dual-zone automatic climate control Only available on Crew Cab and Double Cab models.
• Defogger, rear-window electric
• Window, power, rear sliding with rear defogger on Crew Cab or Double Cab models
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags Crew Cab: single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (With (ZW9) pickup box delete on Double and Regular Cab you will get single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)
• Front and Rear Park Assist, Ultrasonic
• Rear Vision Camera with dynamic guide lines (Removed when (ZW9) pickup box delete is ordered.) (Removed when (ZW9) pickup box delete.)
• Tire Pressure Monitoring System (does not apply to spare tire)

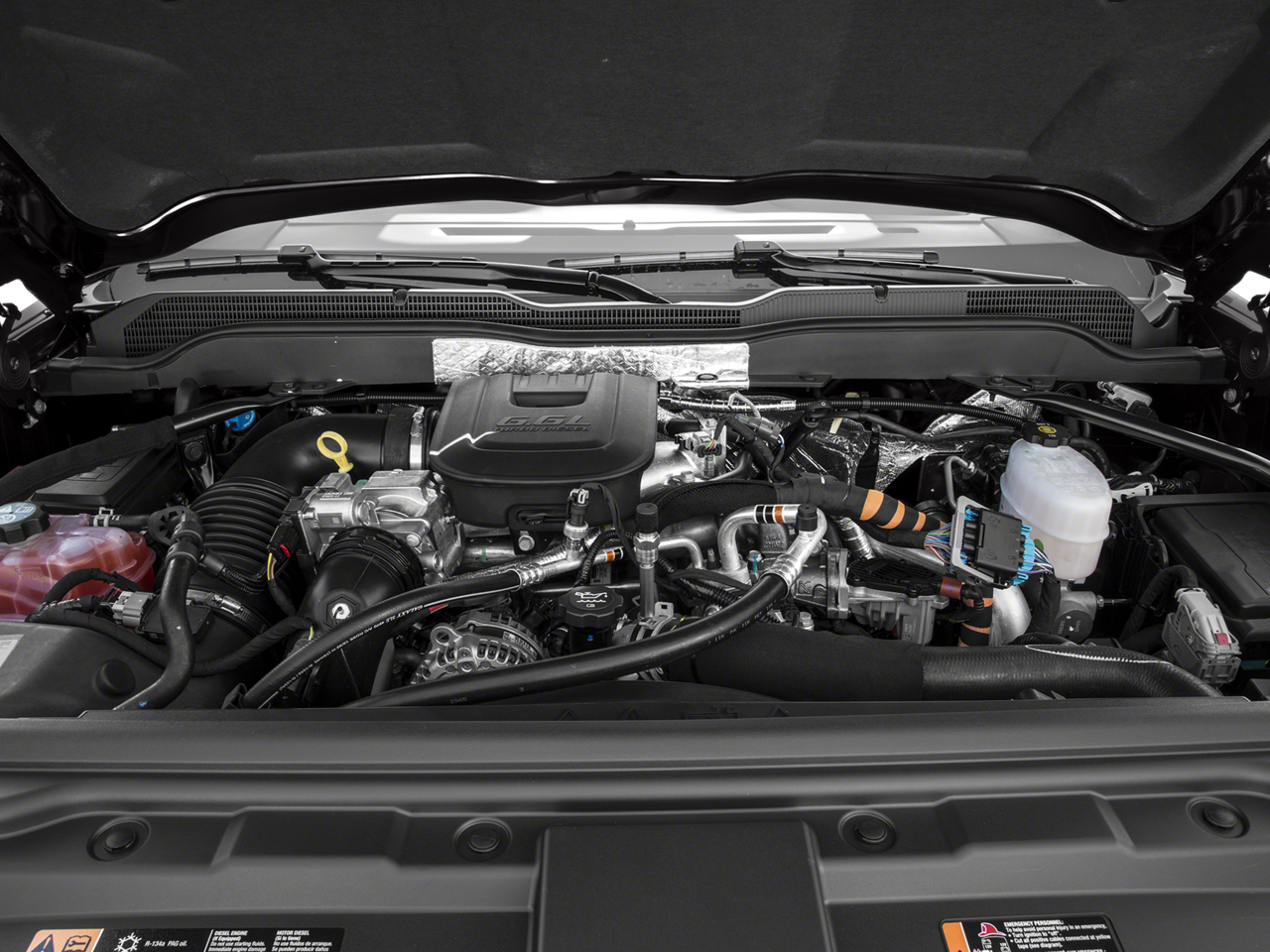

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI, E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)

• 110-Volt AC Power Outlet
• 4 Movable Upper Cargo Tie Downs
• 4-Wheel Disc Brakes
• 4.10 Rear Axle Ratio
• 4.2" Diagonal Color Display Driver Info Center
• 6" Rectangular Chromed Assist Steps (LPO)
• 7 Speakers
• ABS brakes
• Air Conditioning
• Alloy wheels
• AM/FM radio: SiriusXM
• Apple CarPlay
• Auto-dimming door mirrors
• Auto-Dimming Inside Rear-View Mirror
• Auto-dimming Rear-View mirror
• Automatic temperature control
• Black Recovery Hooks
• Body-Color Front Bumper
• Body-Color Rear Bumper
• Bodyside moldings
• BOSE Sound w/6 Speaker System
• Brake assist
• Bright Sill Plates
• Bumpers: body-color
• Camper & 5th Wheel Trailer Wiring Provisions
• Carpeted Front & Rear Floor Mats
• CD player
• Chrome Bodyside Moldings
• Chrome Door Handles
• Chrome Mirror Caps
• Chrome Power-Adjustable Heated Trailering Mirrors
• Chrome wheels
• Color-Keyed Carpeting Floor Covering
• Compass
• Deep-Tinted Glass
• Delay-off headlights
• Digital Steering Assist
• Driver & Front Passenger Vanity Mirror Visors
• Driver Alert Package
• Driver door bin
• Driver vanity mirror
• Dual front impact airbags
• Dual front side impact airbags
• Dual-Zone Automatic Climate Control
• Electric Rear-Window Defogger
• Electronic Shift Transfer Case
• Electronic Stability Control
• Emergency communication system: OnStar Guidance
• Exterior Parking Camera Rear
• EZ-Lift & Lower Tailgate
• Floor Mounted Console
• Forward Collision Alert
• Front anti-roll bar
• Front Bucket Seats
• Front Center Armrest w/Storage
• Front dual zone A/C
• Front fog lights
• Front Halogen Fog Lamps
• Front License Plate Kit
• Front reading lights
• Front wheel independent suspension
• Fully automatic headlights
• Garage door transmitter
• HD Radio
• Heated & Vented Front Seating
• Heated door mirrors
• Heated Driver & Front Passenger Seating
• Heated Front Full Feature Bucket Seats
• Heated front seats
• Heated Leather Wrapped Steering Wheel
• Heated Power-Adjustable Outside Mirrors
• Heavy-Duty Trailering Equipment
• High Country
• High Country Premium Package
• Illuminated entry
• Integrated Trailer Brake Controller
• Lane Departure Warning System
• Leather-Wrapped Steering Wheel
• Low tire pressure warning
• Manual Tilt-Wheel/Telescoping Steering Column
• Memory seat
• Navigation System
• Occupant sensing airbag
• OnStar 4G LTE Wi-Fi Hotspot
• OnStar 6 Month Guidance Plan
• Outside temperature display
• Overhead airbag
• Overhead console
• Panic alarm
• Passenger door bin
• Passenger vanity mirror
• Perforated Leather Appointed Seat Trim
• Power door mirrors
• Power driver seat
• Power passenger seat
• Power Sliding Rear Window w/Defogger
• Power steering
• Power Sunroof
• Power windows
• Power Windows w/Driver Express Up & Down
• Power-Adjustable Pedals For Accelerator & Brake
• Preferred Equipment Group 3LZ
• Premium audio system: Chevrolet MyLink
• Radio: AM/FM Stereo w/Chevrolet MyLink/Navigation
• Rear 60/40 Folding Bench Seat (Folds Up)
• Rear reading lights
• Rear seat center armrest
• Rear step bumper
• Rear Vision Camera w/Dynamic Guide Lines
• Rear Wheelhouse Liners
• Rear window defroster
• Remote Keyless Entry
• Remote keyless entry
• Remote Locking Tailgate
• Remote Vehicle Starter System
• Security system
• Single Slot CD/MP3 Player
• SiriusXM Satellite Radio
• Speed control
• Speed-sensing steering
• Split folding rear seat
• Spray-On Pickup Box Bed Liner w/Bowtie Logo
• Standard Suspension Package
• Steering Wheel Audio Controls
• Steering wheel mounted audio controls
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Traction control
• Trip computer
• Turn signal indicator mirrors
• Ultrasonic Front & Rear Park Assist
• Unauthorized EntryTheft Deterrent System
• Universal Home Remote
• Variably intermittent wipers
• Ventilated front seats
• Voltmeter
• Wheel Locks (Set of 4) (LPO)
• Wheels: 20" Chromed Aluminum
• Wireless Charging

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 21100
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3500
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QFC
• Rear Tire Order Code: QFC
• Front Tire Size: LT265/60R20E
• Rear Tire Size: LT265/60R20E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 16.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.50
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.23
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.75
• Ground Clearance, Rear (in): 8.20
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.90
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.20
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -

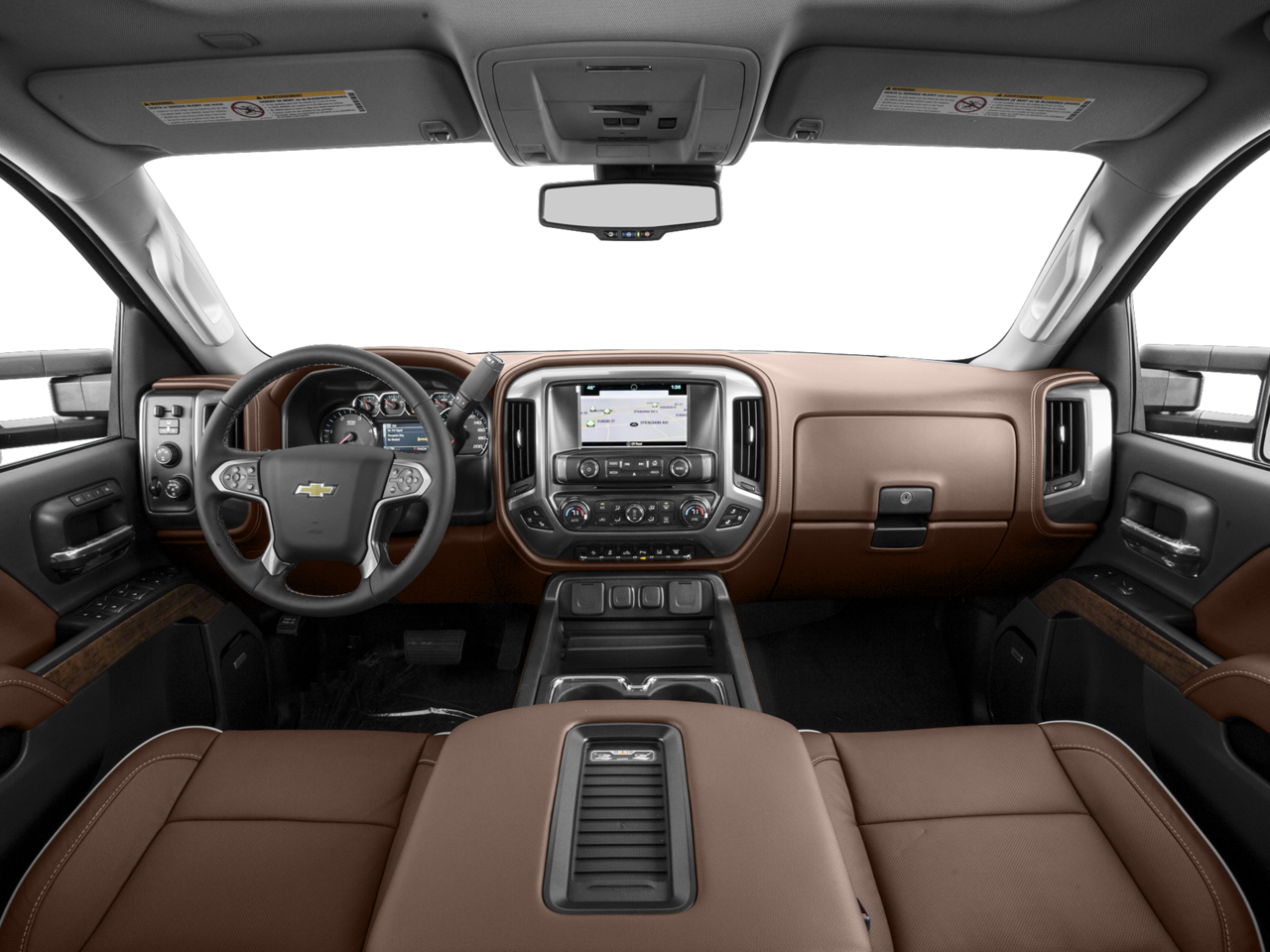

• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

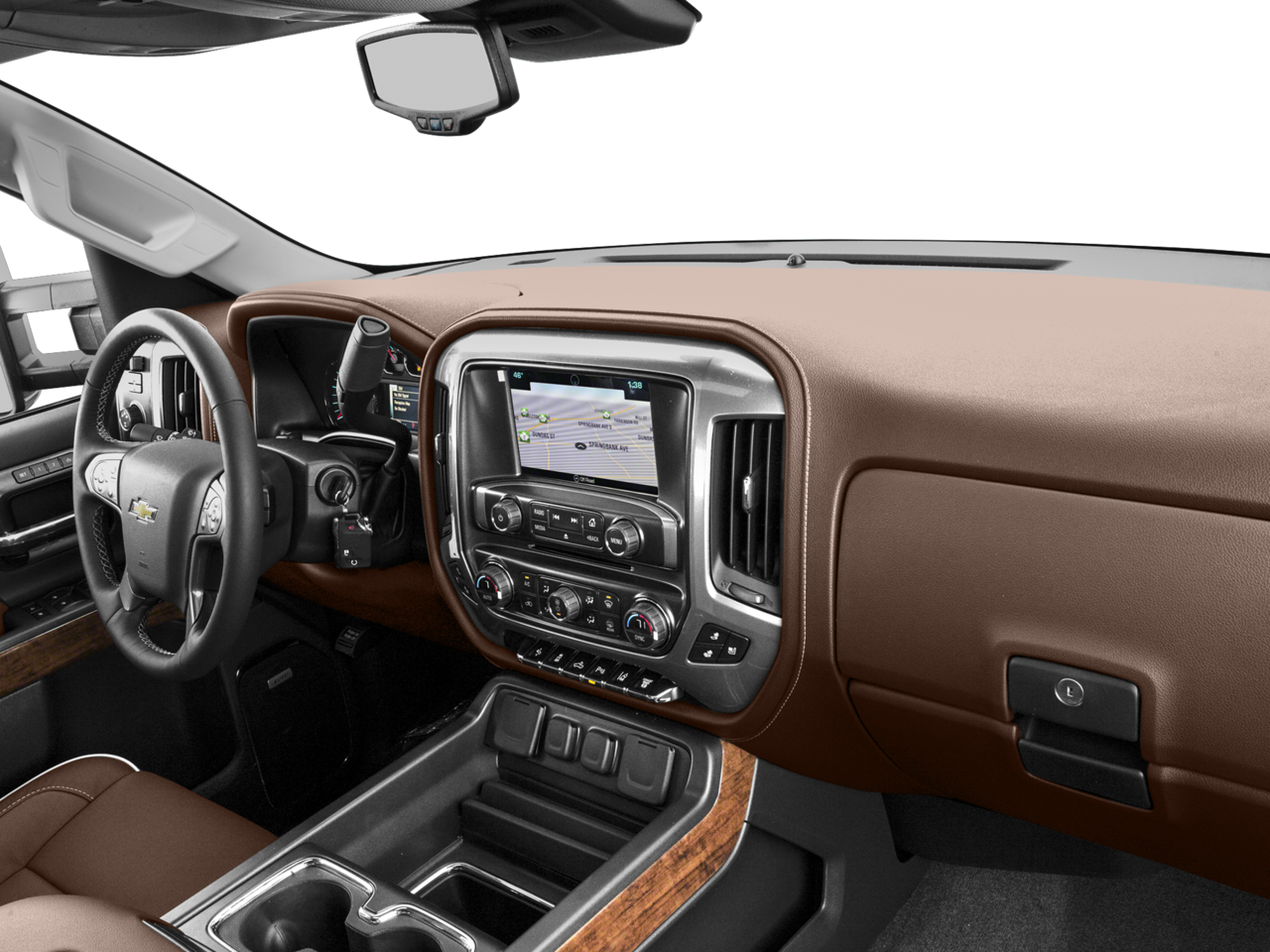

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
